Dyb1-01a-006-2 buffer valve
Dyb1-01a-006-2 buffer valve
Working principle
When the load increases gradually, the high-pressure oil enters the buffer valve body from port 1, and is discharged from port 2 through the gap between the steel ball and the ball seat hole. When the pressure rises to a certain extent, port 1 to port 2 is blocked.
It can protect the motor and reduce the starting noise.

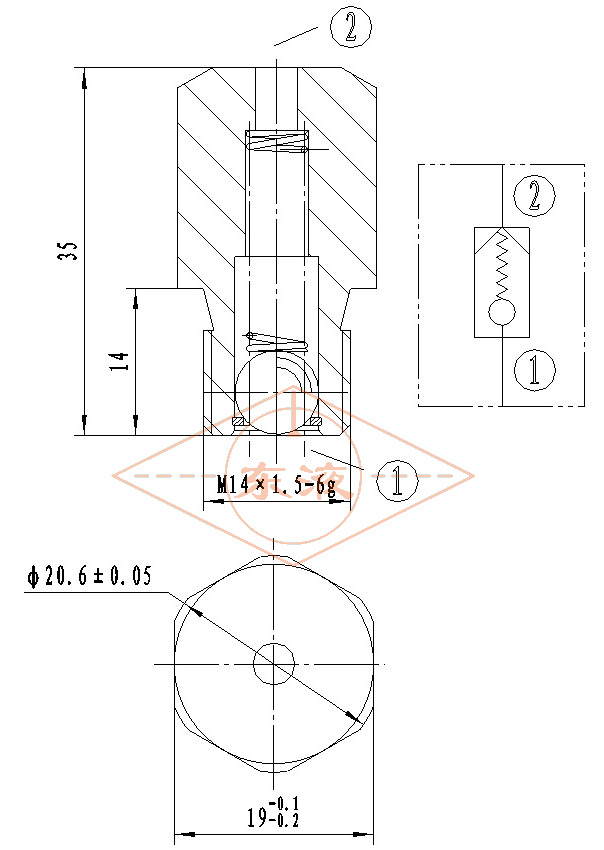

Full View Drawing
