Applications
The double pump uses double pumps to supply oil at the same time when the pressure is low, and only small pump supplies oil when the pressure is high. The large pump carries out internal circulation through opening valve and closing valve, so as to reduce power loss and feed unnecessary oil temperature when the pressure is high.
The double pump is mainly used as the power source in the hydraulic system with low pressure and large flow and high pressure and small flow. Compared with the pump with fixed flow, the motor power can be saved by 35%, which is an ideal energy-saving product

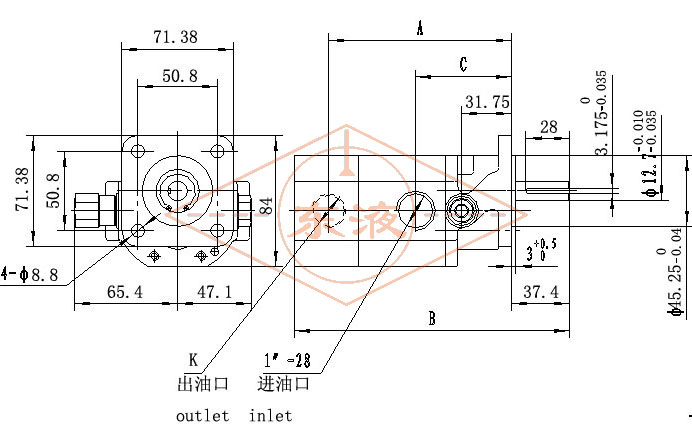

Full View Drawing

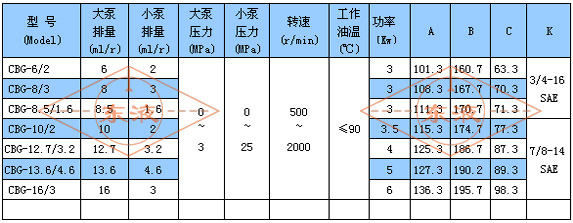

Technical Specifcations
