Ghp1al high pressure small displacement gear oil pump
Ghp1al high pressure small displacement gear oil pump
Applications
Ghp1al series gear pump is designed according to the international popular standard and referring to mar 2000h1 in Italy.
It is mainly used in heavy-duty construction machinery and lifting equipment. It is also used as hydraulic power source in hydraulic tools, machine tools and medical devices

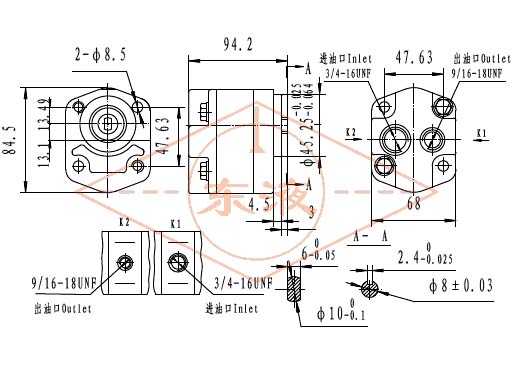

Full View Drawing

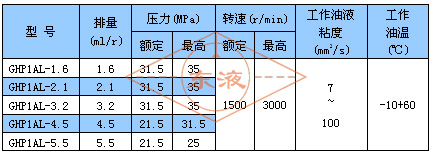

Technical Specifcations
