Cbt2-g bidirectional gear oil pump
Cbt2-g bidirectional gear oil pump
purpose/Applications
1. Small size, beautiful appearance, low noise and long service life.
2. When the pump shaft rotates in the forward and reverse direction, it can supply oil respectively.
In the system, the automatic reversing is realized because of the oil supply of the two-way pump, without setting the reversing device.

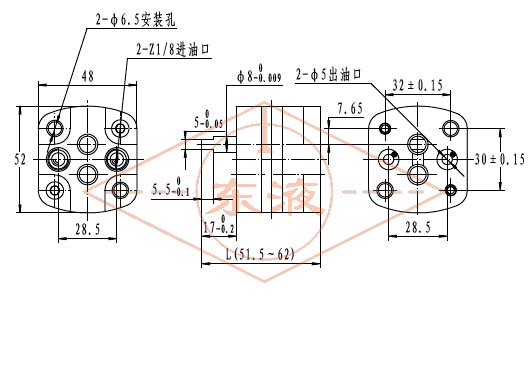

Full View Drawing

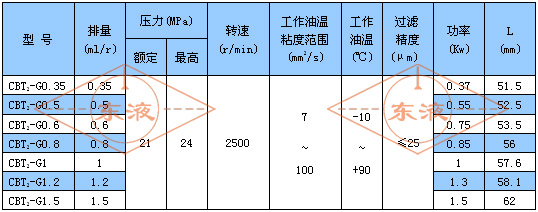

Technical Specifcations
