Cb-h series gear pump
Cb-h series gear pump
Applications
Cb-h series gear pump is a high pressure and small displacement gear pump newly developed by our factory. It has the characteristics of small volume, light weight, high pressure, simple structure, convenient maintenance, reliable operation and low unit price. It is mainly used in construction machinery, transportation vehicles, hydraulic hoists, hydraulic machines and tools, machine tools, medical equipment, and hydraulic power sources requiring high pressure and small displacement.

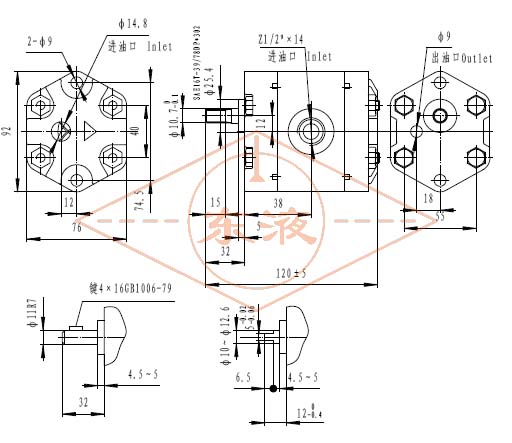

Full View Drawing

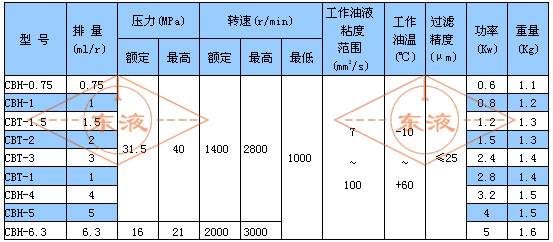

Technical Specifcations
