Ghp1a high pressure small displacement gear oil pump
Ghp1a high pressure small displacement gear oil pump
Applications
Ghp1a series gear pump is designed according to the international popular standard and referring to mar 2000h1 in Italy.
It is mainly used in heavy-duty engineering machinery and lifting equipment. It is also used as hydraulic power source in hydraulic machinery, machine tool machinery and medical equipment

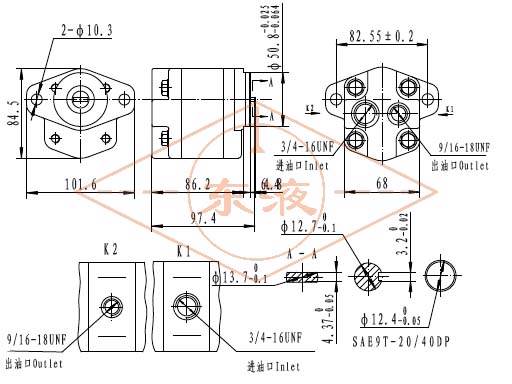

Full View Drawing

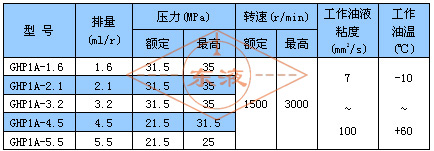

Technical Specifcations
