Working principle
The hydraulic power unit is a small hydraulic system integrating overflow valve, check valve, unloading valve, buffer valve, throttle valve, gear pump, motor, oil filter and oil tank. It has the characteristics of small volume, light weight and beautiful appearance. In the case of few general action requirements, users only need to configure the actuator (oil cylinder, oil motor) to use it directly, The hydraulic power unit can be assembled by adding or removing various control elements (such as electromagnetic directional valve) according to the different needs of users.
Full View Drawing

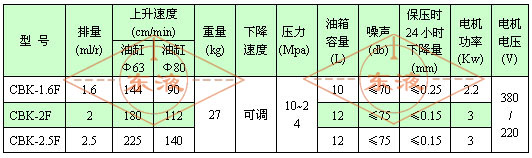

Technical Specifcations
