Cbk2 gear oil pump
Cbk2 gear oil pump
Applications
This pump has two ways of oil inlet and outlet. One is the front cover oil outlet and the back cover oil inlet; The other is oil in and out on both sides. It can be manufactured according to the user's requirements.
Features: 1. High pressure, small displacement. 2. Small size and light weight. 3. Low noise.
It is mainly used in the hydraulic system with high pressure and small displacement. It can replace the plunger pump in some places and is widely used in the hydraulic package and hydraulic press as the power pump.

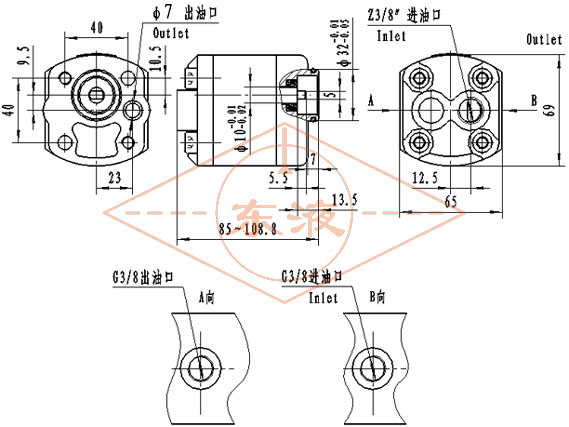

Full View Drawing

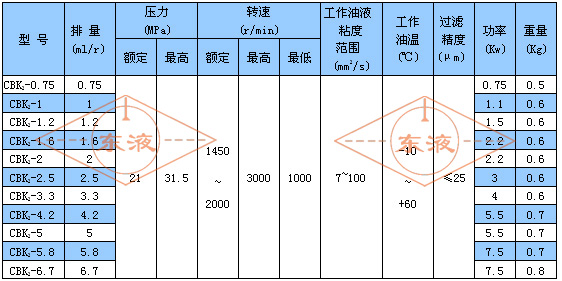

Technical Specifcations
