Cbt-e5 gear pump
Cbt-e5 gear pump
Applications
The gear pump is mainly used for engineering dump truck, according to the needs of different users, it can also be used in hydraulic press and other mechanical equipment.
Note: when ordering in rotation direction, please indicate: flat left flat right flower left flower right

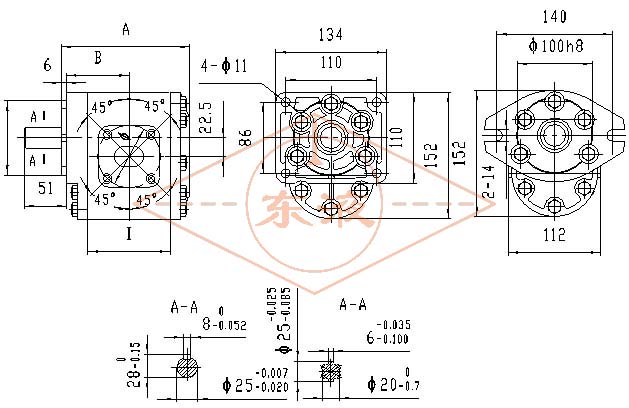

Full View Drawing

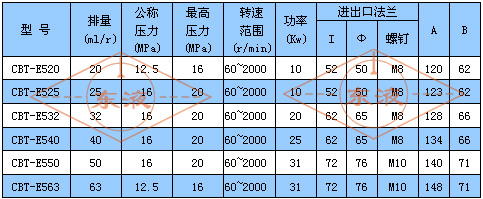

Technical Specifcations
