Is1-15 two position three way solenoid directional valve
Is1-15 two position three way solenoid directional valve
Working principle
When the electromagnet is not energized, ② and ① are connected, and ③ are not connected; When the electromagnetic iron is energized, ② and ③ are connected, and ① are not connected.

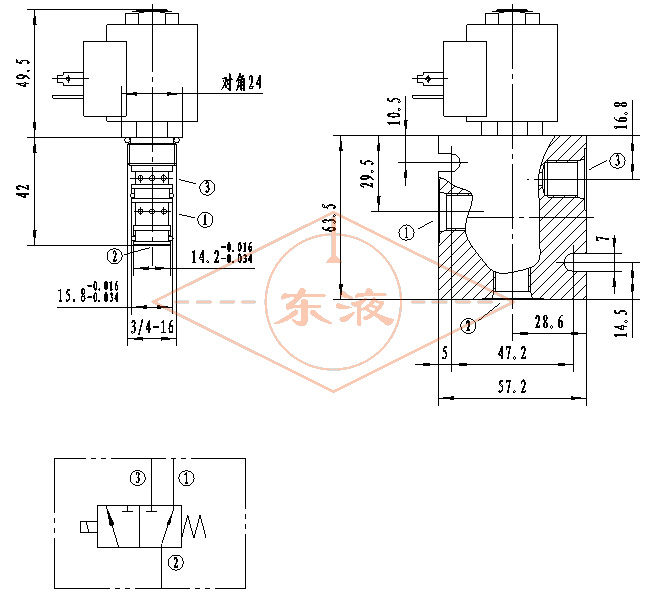

Full View Drawing

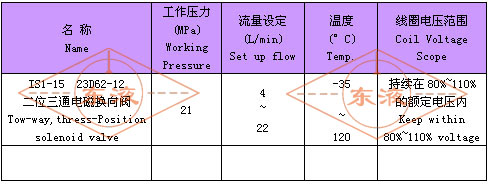

Technical Specifcations
