Working principle
When the pressure at port (1) exceeds the opening pressure, port (1) opens to port (2); In the opposite direction, port 2 to port 1 is closed.
One way valve is also called check valve. Used in hydraulic system to control the communication or cut off of oil flow. The inlet and outlet of the straight through check valve are in the same axis direction, and can be directly connected with the system pipeline by threaded pipe joint. The one-way valve can be combined with relief valve, pressure reducing valve, sequence valve, throttle valve and speed regulating valve in parallel to form one-way relief valve, one-way pressure reducing valve, one-way sequence valve, one-way throttle valve and one-way speed regulating valve, so as to further play the role of these valves.

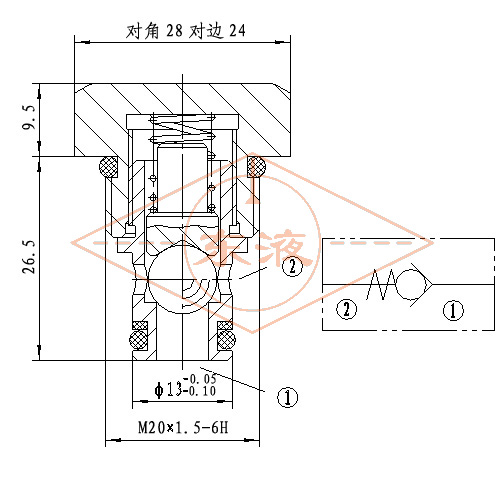

Full View Drawing

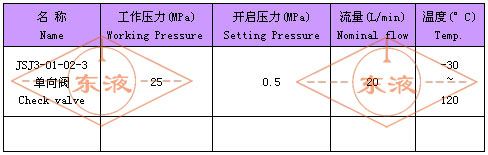

Technical Specifcations
