Is1-18 hydraulic control check valve
Is1-18 hydraulic control check valve
Working principle
② To ① open, in the opposite direction, ① to ② close, or ① port load; When the pressure at P port exceeds 1 / 3 of the load pressure, ① to ② open.

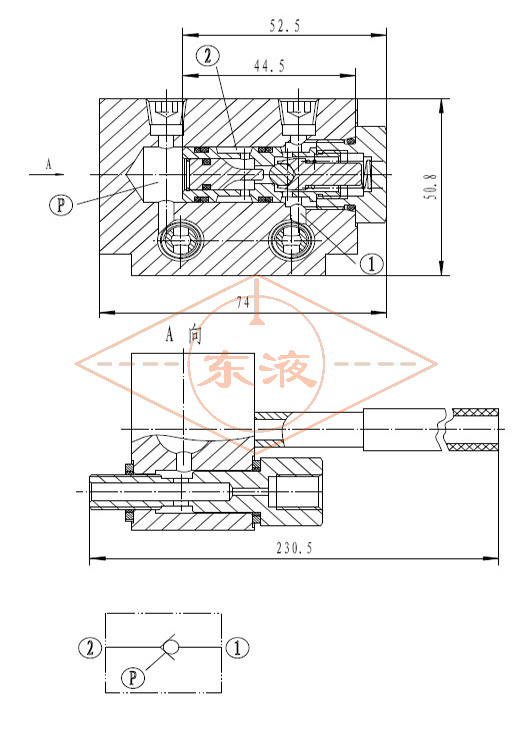

Full View Drawing

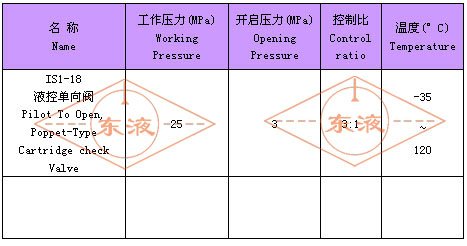

Technical Specifcations
