CBK1 gear pump
CBK1 gear pump
Applications
The pump is a high pressure small displacement series gear pump, which is very different from CBK in installation and connection. The pump is mainly used in small construction machinery and hydraulic system of hydraulic tools requiring high pressure and small displacement.

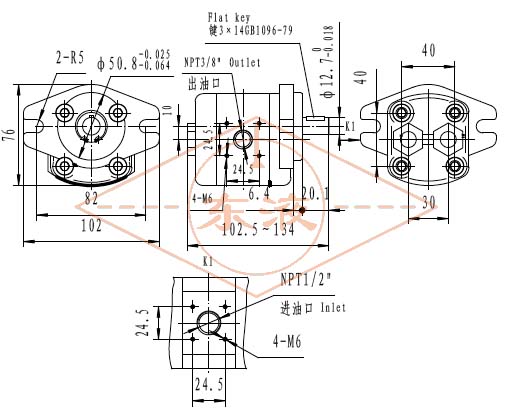

Full View Drawing

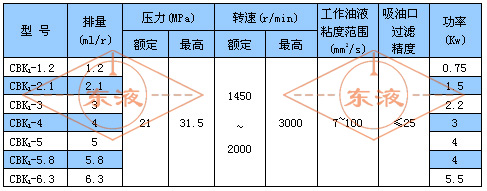

Technical Specifcations
