Two position two way check valve
Two position two way check valve
Working principle
When the electromagnet is not energized, ① to ② and ② to ① are closed; When the electromagnet is energized, ① to ② and ② to ① are all on.
Electromagnet can work continuously; Long life valve core and valve sleeve; High efficiency electromagnet structure; Optional coil voltage and terminal; Zero leakage.

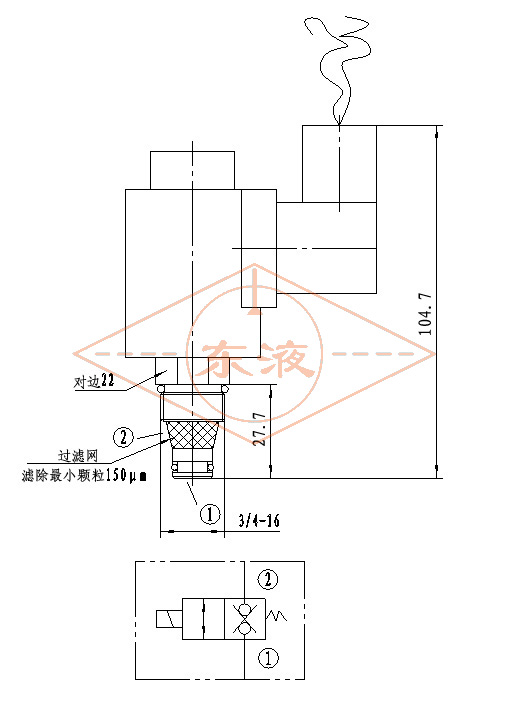

Full View Drawing

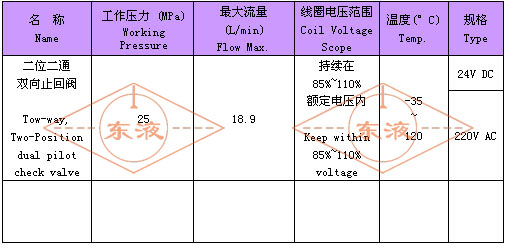

Technical Specifcations
