CBG gear pump
CBG gear pump
Applications
This series of gear pump is a three piece combination, with fixed axial clearance, pressure compensation device: simple structure, impact resistance, high volumetric efficiency, reliable operation and other advantages: it is widely used in the hydraulic system of construction machinery, lifting and transportation machinery and mining machinery

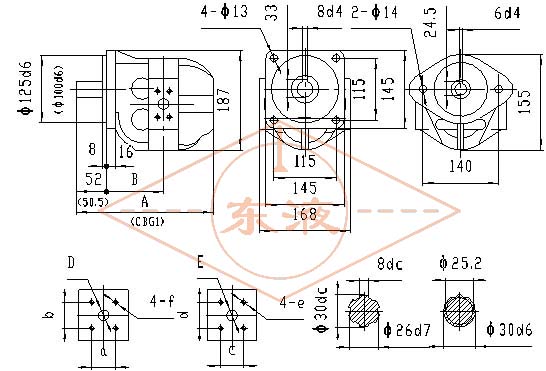

Full View Drawing

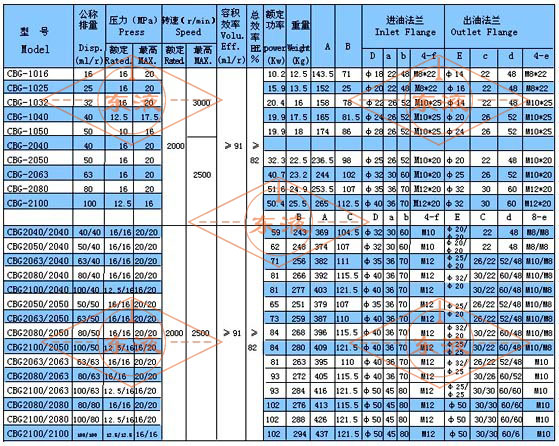

Technical Specifcations
