Jsj3-01-02-4 relief valve
Jsj3-01-02-4 relief valve
Working principle
When the pressure of port (1) exceeds the pressure set by the pressure regulating spring, the steel ball valve core is opened and port (1) is connected to port (2) to prevent overpressure of the system.

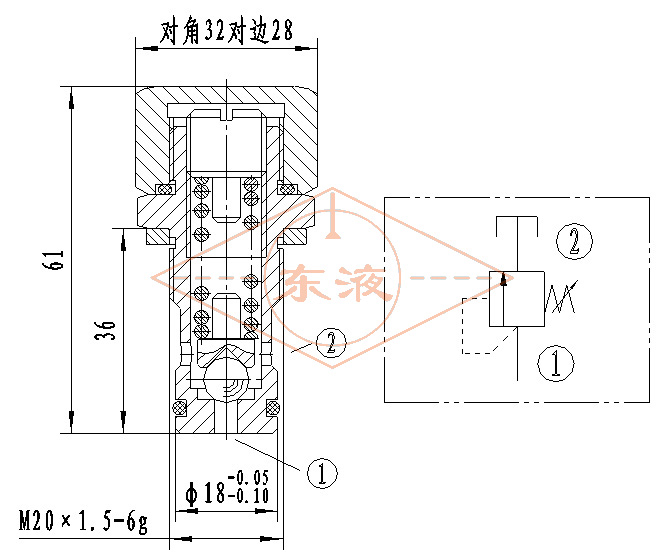

Full View Drawing

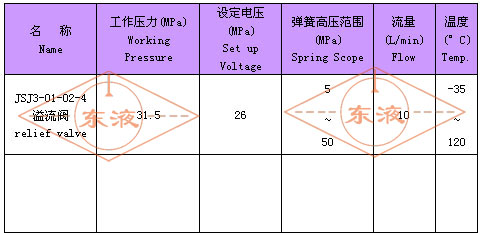

Technical Specifcations
