Is1-16 pressure compensation check valve
Is1-16 pressure compensation check valve

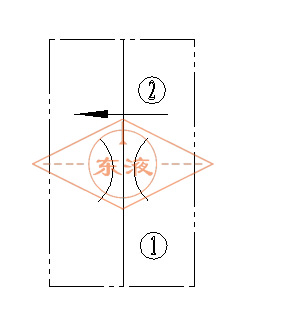

Working principle
No matter how the load of port 1 changes, the flow of port 2 can be kept within a rated range. The size of the fixed orifice depends on the flow requirement of the customer.
When the pressure oil is from ① to ②, and the pressure difference is greater than 0.5MPa, the general pressure difference is between 7.5Mpa and 24MPa. The valve begins to respond to the load change. Through pressure compensation, the flow of the valve is accurately kept within a rated range; In the opposite direction, ② to ①, there is no pressure compensation.

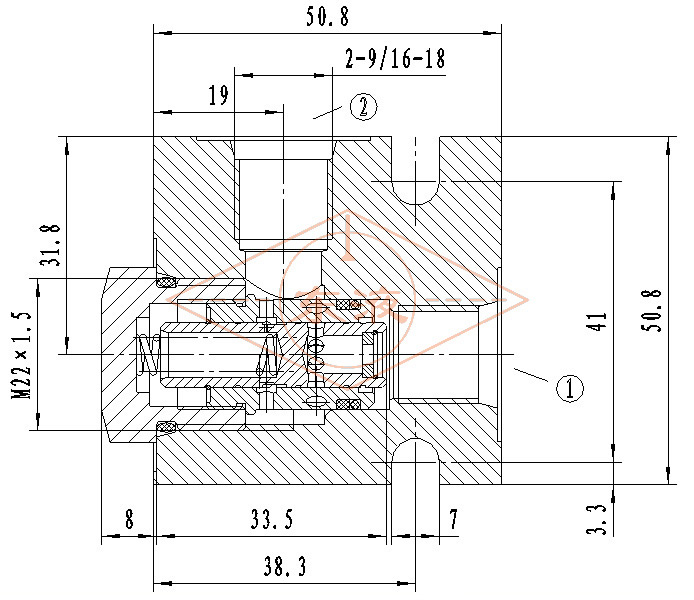

Full View Drawing
Technical Specifcations
